| OS Support | Microsoft® Windows® 10 64-bit compliant |
|---|---|
| Security | Kensington Lock – Key Lock |
| Dimension | Motherboard: 5.8" x 5.4" (Mini-STX) , Barebones: 155 x 155 x 80 mm (1.92L) |
| Accessories | 2 x SATA Data with Power Cable , 1 x Screws Pack |
| Power Unit | 120W/19V Adapter |
| LAN | 1 x RJ45 Gigabit LAN – Realtek RTL8111H |
| Storage | M.2_1: Type 2280 PCIe Gen3 x4 , M.2_2: Type 2280 PCIe Gen3 x4 , 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1) |
| Audio | 1 x Head Phone with Mic Jack , 1 x Mic-In , Realtek ALC233 |
| Graphics Output | 1 x HDMI (4K@60Hz) , 1 x DisplayPort (4K@60Hz) , 1 x D-Sub |
| Graphics | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU , Integrated AMD Radeon™ R-Series Graphics in A-series APU |
| Chipset | AMD A300 |
| Memory | Supports 2 x SO-DIMM DDR4, Max. 64GB (non-ECC) , Ryzen APU , DDR4-2933MHz , A-series APU , DDR4-2400MHz |
| Cooler | Supports AMD AM4 CPU Cooler (Max. Height ≦ 46mm) |
| CPU | Supports AMD AM4 Socket CPUs (Picasso, Raven Ridge, Bristol Ridge, up to 65W) |

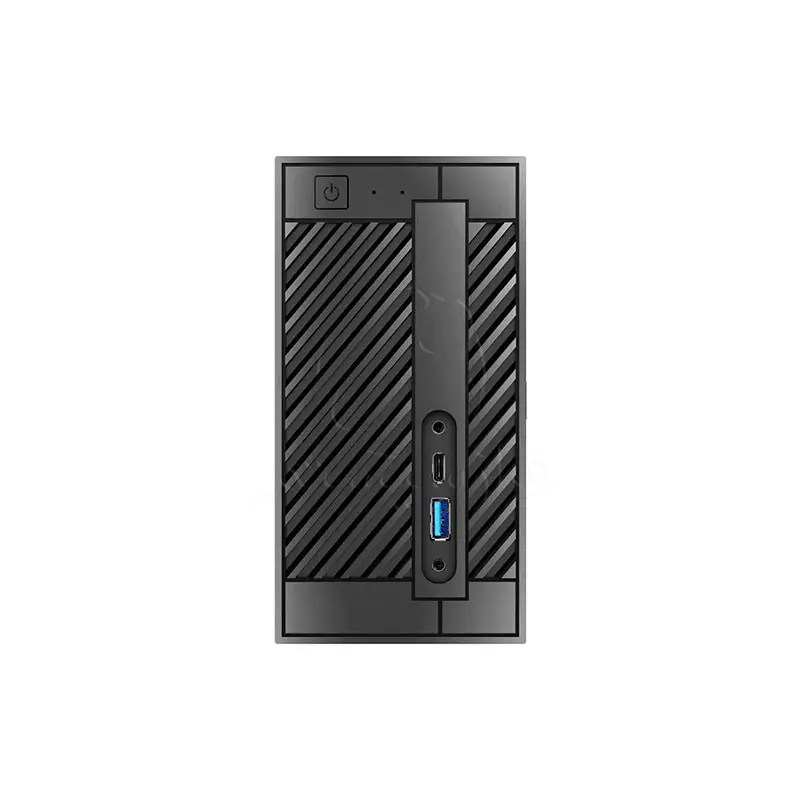

DeskMini A300
- AMD AM4 Socket CPU
- مجهز به حافظه پرسرعت DDR4
- Dual Ultra M.2 (NVMe)
- دارای دو هارددرایو 2.5″ SATA 6Gb
- پشتیبانی از عملکرد RAID 0/1
- HDMI, DisplayPort, D-Sub
- مجهز به تکنولوژی AMD Fluid Motion
- M.2 For Wi-Fi Module
- دارای پورت USB 3.1 نسل اول Type-C
